Gravure wafer printing to support 6um microbumps in microLED displays

As microLEDs inevitably shrink in size, the micro-bumping requirements for the microLED dies becomes more challenging. Direct wafer-based printing based on gravure offset techniques offers a promising solution in this regard. Indeed, this is another field where printed electronics can play a role.


Komori has recently achieved excellent results, which will be unveiled at TechBlick's upcoming microLED event on 30 Nov-1 Dec 2022: www.TechBlick.com/microLEDs

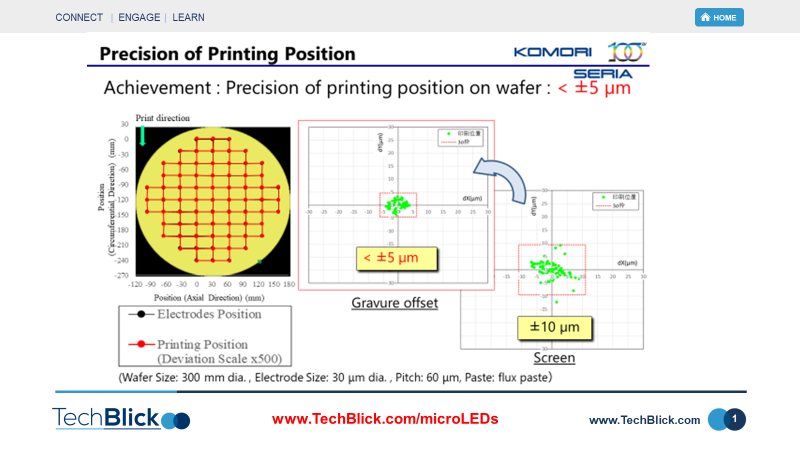

As seen in the slides below, gravure printing can print microbumps printed using flux paste, achieving a printing precision of 5 µm within a range of 300 mm. The first slides show the precision of the printing position on a wafer. In particular, it compares it with screen printing, showing how gravure printing advances the fine feature printing capability w.r.t screen printing (+/-10 um although screen printing too can and will also advance)

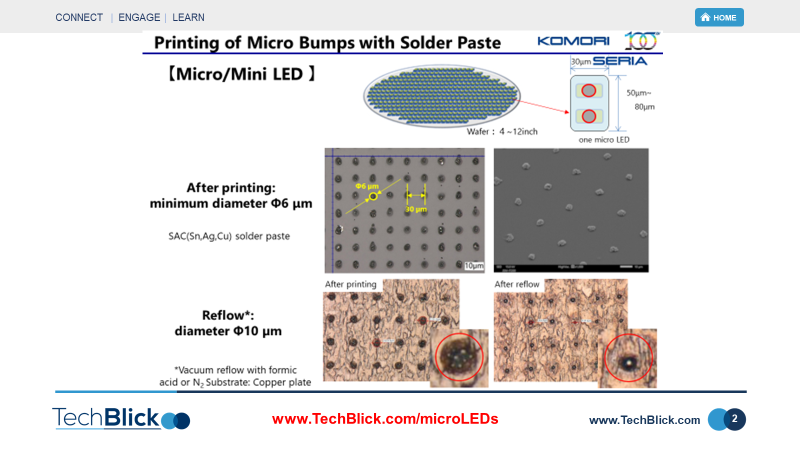

As shown in slide two, the minimum diameter that can be printed with SAC (Sn, Ag, Cu) solder paste is 6 μm and the distance between the centers of the bumps is 30 μm. Reflow has been successful with a minimum diameter of 10 µm. This way for example, a microLED die in the size of 30um by 50 or 80um can be supported.

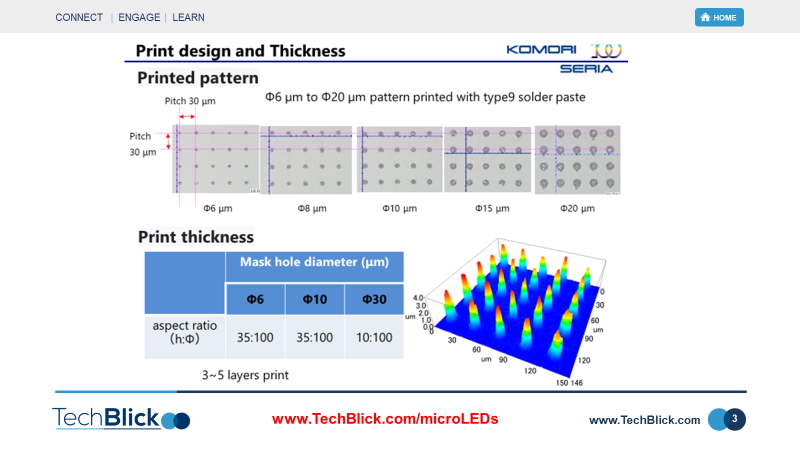

Furthermore, as shown in slide three, this technique also offers the possibility to control the thickness by printing several diameters. The smaller the bump diameter, the higher the aspect ratio.

This are very nice results, showing the viability of gravure printing technique for microbumps. This technology can support current and near-term generations of microLEDs but will it evolve as microLED dies further shrink in the longer term?
